OEM ODM Extruder Wire Mesh Screen Single Layer And Multi Layer

Ask Lasest Price
Brand Name :	Xingkuan Tech
Model Number :	Single-layer and multi-layer Custom Cut Pieces extruder mesh screen
Certification :	Bv,ce,sgs,Iso
Price :	Negotiate
Payment Terms :	L/C, T/T.etc
Supply Ability :	30000pcs/day
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

OEM ODM Extruder Wire Mesh Screen Single Layer And Multi Layer

Single-layer and multi-layer Custom Cut Pieces extruder mesh screen
Descriptions :

With a vast library of dies and extensive customization capability, xingkuan manufactures extruder screens as Cut Pieces in virtually any shape, size, or mesh. These cut pieces come in single-layer and multi-layer extruders, and in numerous types of mesh combinations and weaves in order to precisely match each customer’s filtration specifications and extrusion process objectives.

Quick details & specifications :

Material : stainless steel or plain steel/ black wire cloth

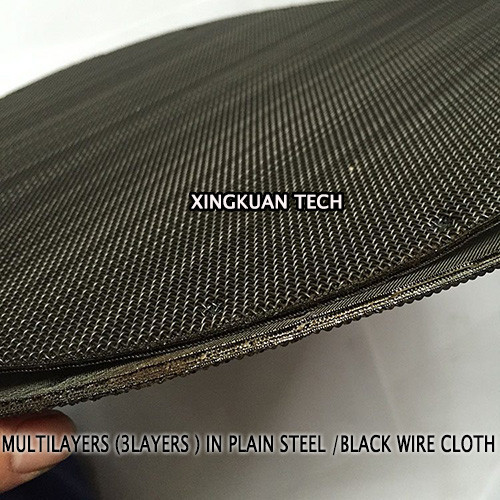

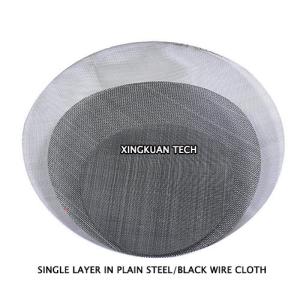

Layers : single /one layer , or multi layers (2,3,4,5 layers ,etc )

Size &shape:customerized on request

Mesh count : based on request for each layers

Dutch weave parameters of standard extruder screen :

Weaving Type	Mesh counting	Absolute micron rating	Nominal micron rating
Plain Dutch	12X64	270-290	200
Plain Dutch	14X88	220-240	150
Plain Dutch	16X80	225-235	140
Plain Dutch	24X110	115-125	80
Plain Dutch	30X150	110-112	63
Plain Dutch	40X200	70-75	55
Plain Dutch	50X250	58-63	40
Plain Dutch	80X400	40-45	35
Twill Dutch	30X250	110-120	53
Twill Dutch	80X700	35-40	25
Twill Dutch	120X400	50-55	40
Twill Dutch	165X800	25-28	15
Twill Dutch	200X600	30	20
Twill Dutch	165X1400	16-20	10
Twill Dutch	200X1400	12-14	5

Plain weave parameters of standard extruder screen mesh
SS Mesh	Wire Dia. mm	Aperture Size mm	Open Area
10 X 10	0.711	1.829 MM	51.8
14 X 14	0.457	1.357 MM	55.9
16 X 16	0.457	1.131 MM	50.7
20 X 20	0.457	0.813 MM	41.0
24 X 24	0.376	0.682 MM	41.4
30 X 30	0.376	0.531 MM	34.2
30 X 30	0.310	0.536 MM	40.0
40 X 40	0.274	0.361 MM	32.3
50 X 50	0.193	0.335 MM	43.6
60 X 60	0.193	0.230 MM	29.8
80 X 80	0.122	0.196 MM	37.9
100 X 100	0.102	0.152 MM	36.0
120 X 120	0.091	0.120 MM	31.8
150 X 150	0.071	0.088 MM	29.6
200 X 200	0.050	0.077 MM	36.76
300 X 300	0.040	0.045 MM	27.83
325 X 325	0.035	0.043 MM	30.49
400 X 400	0.028	0.036 MM	31.25

Applications :

Mainly used for filtration of plastics and rubber processing industry, chemical and pharmaceutical industry. Some examples are:

Reclamation of Plastic Waste
Extrusion profiles
Blown Film Extrusion
Other industries :
- Polyester Oriental Yarn.
- Polyester Stable Fibers.
- Polypropylene Yarn.
- Nylon and Acrylic Yarn.
- BCF Polypropylene Yarn.
- Polypropylene Spun bonded Non-woven Fabrics.
- Polyester fiber production.
- chemical and pharmaceutical industry.
- Oil and fuel filtration.
- Extrusion in lamination plants.
- Extrusion in Multilayer film plants

Products photo show :
